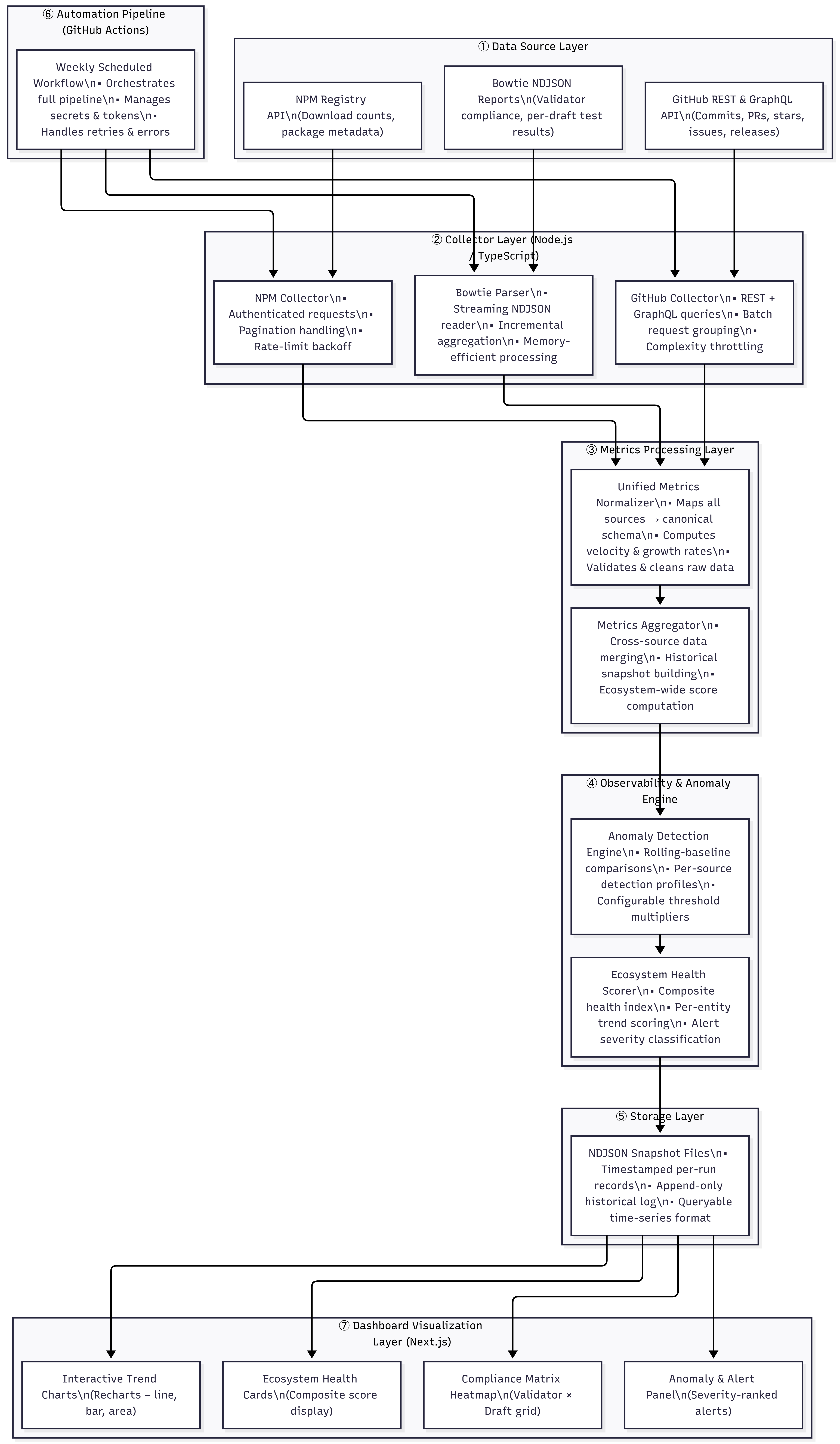

System Architecture

The platform draws from three authoritative external sources, each exposing a distinct dimension of ecosystem health. The NPM Registry API delivers weekly package download counts and version metadata for all tracked JSON Schema packages, forming the adoption signal layer. The GitHub REST and GraphQL APIs expose repository-level activity: commits, pull requests, issues, releases, stars, and forks across all ecosystem projects. Bowtie NDJSON compliance reports supply per-validator, per-draft test-case results for the full JSON Schema specification suite. Together, these three sources cover the complete observable surface of the ecosystem.

Three dedicated, isolated collectors — the NPM Collector, GitHub Collector, and Bowtie Parser — each implement as a TypeScript module and receive their trigger directly from the Automation Pipeline (layer 6). This separation ensures that a change in one source's API contract only requires modifying that collector, leaving the rest of the pipeline untouched. The NPM Collector handles authenticated bulk download queries with pagination and request batching. The GitHub Collector orchestrates REST and GraphQL queries, applying exponential backoff with jitter on 429 responses and splitting queries that exceed GraphQL complexity limits. The Bowtie Parser implements a streaming NDJSON reader built on Node.js readable streams, processing compliance reports line by line to avoid loading multi-gigabyte files into memory.

Raw API responses from all three collectors flow into a two-stage processing layer. The first stage, the Unified Metrics Normalizer, maps each source's heterogeneous data format into a single canonical metrics schema. This schema defines standardized fields for metric name, source identifier, entity key, collection timestamp, raw value, computed growth rate, normalized health score, and anomaly flags. Acting as an anti-corruption layer, the normalizer shields all downstream logic from upstream API changes. The second stage, the Metrics Aggregator, merges normalized signals from all sources, constructs historical snapshot records per entity, and computes ecosystem-wide aggregate scores that summarize overall health in a single comparable index.

The observability and anomaly engine sits between the metrics processing layer and storage, transforming normalized metrics into actionable signals before they are persisted. Rather than applying static absolute thresholds, the engine maintains a rolling historical baseline for each tracked entity derived from the previous N collection runs. Anomalies fire when a metric deviates from its own entity-specific baseline by more than a configurable multiplier, making detection self-calibrating and context-aware. The Anomaly Detection Engine runs three specialized profiles in parallel: the NPM profile monitors download velocity for sudden drops or spikes, the GitHub profile applies dormancy detection for repositories with sustained inactivity, and the Bowtie profile tracks compliance score regression between successive runs. Flagged anomalies pass to the Ecosystem Health Scorer, which computes a composite health index per entity, assigns per-entity trend scores, and classifies alert severity before writing results to storage.

All processed metrics, health scores, and anomaly flags are persisted as timestamped NDJSON snapshot files, one file per collection run. This append-only, file-based approach requires no database infrastructure, is trivially version-controllable in Git, and produces a fully auditable, reproducible record of every metric ever collected. Each snapshot contains the complete set of normalized entity records for that run. The dashboard reconstructs time-series data by reading and merging any contiguous window of snapshot files. The newline-delimited JSON format is streamable, grep-able, and compatible with standard Unix tooling for ad hoc querying and debugging.

The Automation Pipeline is the orchestration layer that sits above the Data Source Layer and directly triggers all three collectors. A weekly scheduled GitHub Actions workflow fires this pipeline, invoking the NPM Collector, GitHub Collector, and Bowtie Parser in sequence. It manages environment secrets (GitHub and NPM API tokens), handles errors and retries at the step level, runs the metrics processing and anomaly detection stages, and commits the updated NDJSON snapshot to the repository so the Next.js dashboard picks up fresh data on its next build. The pipeline is fully stateless: every run is self-contained and reproducible with no dependency on previous run state. If a single weekly run fails partially, the historical snapshot archive stays consistent and the dashboard always serves the most recent successfully collected data.

The Next.js dashboard is the user-facing surface of the platform. It reads directly from the NDJSON snapshot files produced by the Storage Layer and renders four visualization components: Interactive Trend Charts, Ecosystem Health Cards, a Compliance Matrix Heatmap, and an Anomaly and Alert Panel. Built with React, TypeScript, Tailwind CSS, and Recharts, the dashboard uses build-time static generation with incremental static regeneration for freshness. Interactive trend charts display time-series data for NPM downloads, GitHub activity, and Bowtie compliance scores with configurable time windows. The compliance matrix heatmap renders a validator × draft grid with color-coded health scores, making cross-validator spec compliance immediately comparable. The anomaly and alert panel surfaces severity-ranked alerts with entity context and recommended actions. Health cards present composite scores per tracked entity with trend indicators showing week-over-week direction.
